Thermal Break
68 PLUS Thermal Break Folding Door
قطاع 68 بلس — باب قابل للطي عازل للحرارة

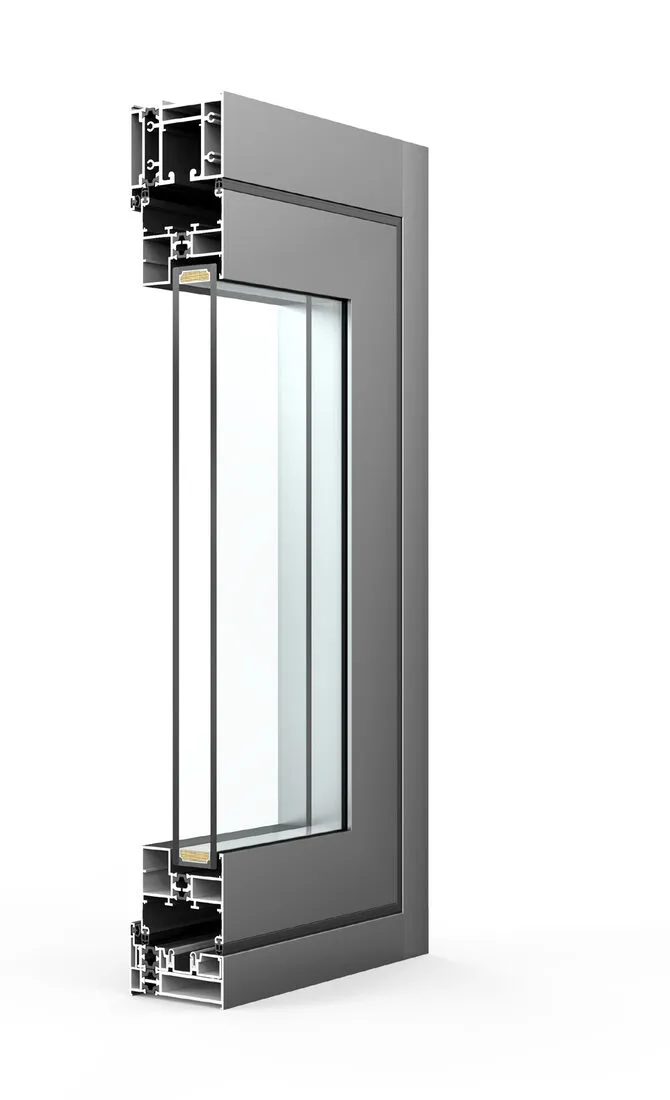

An upgraded take on the 68 platform with reinforced profiles for panel heights up to 3.2 metres, keeping the same insulated glass build-up and Kerssenberg folding hardware.
Product attributes المواصفات
- Opening Method
- Folding
- Min Size
- Panel height 2000 mm
- Max Size
- Panel height 3200 mm
- Max Load
- Single panel 100 kg
- Glass Specification
- 5+27A+5 mm
- Hardware Brand
- Kerssenberg
Performance الأداء
- U-Value (BTU/ft²·hr·°F)
- 0.229
- Water Penetration (Pa)
- 260
- Serviceability Limit State (SLS)
- 1680
- Ultimate Limit State (ULS)
- 2520
Parameters obtained through AAMA / CSA / NAFS testing. The system structure can be adjusted to project requirements to achieve higher parameters.
