Thermal Break

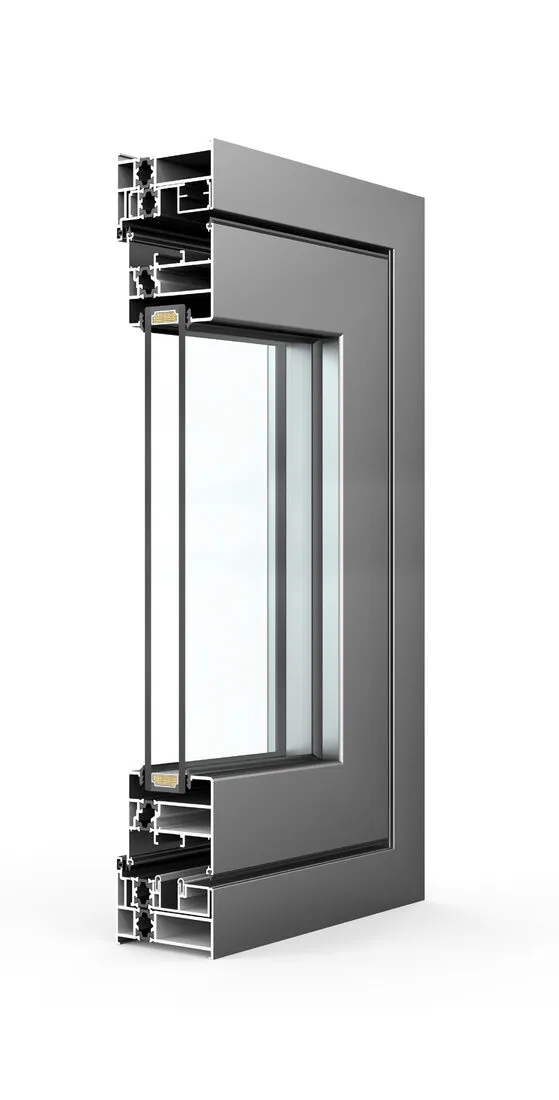

68 Series Thermal Break Folding
قطاع 68 العازل للحرارة — نوافذ وأبواب قابلة للطي
The versatile 68: a folding-and-sliding system sized for both windows and doors, with leaf heights from 2 to 3.5 metres and the same thermal-break glass package as its larger siblings.
Product attributes المواصفات
- Opening Method
- Folding and sliding
- Min Size
- Door leaf height 2000 mm
- Max Size
- Door leaf height 3500 mm
- Max Load
- Single leaf 100 kg
- Glass Specification
- 5+27A+5 mm
- Hardware Brand
- Kerssenberg
Performance الأداء
- U-Value (BTU/ft²·hr·°F)
- 0.229
- Water Penetration (Pa)
- 260
- Serviceability Limit State (SLS)
- 1680
- Ultimate Limit State (ULS)
- 2520
Parameters obtained through AAMA / CSA / NAFS testing. The system structure can be adjusted to project requirements to achieve higher parameters.
