Thermal Break

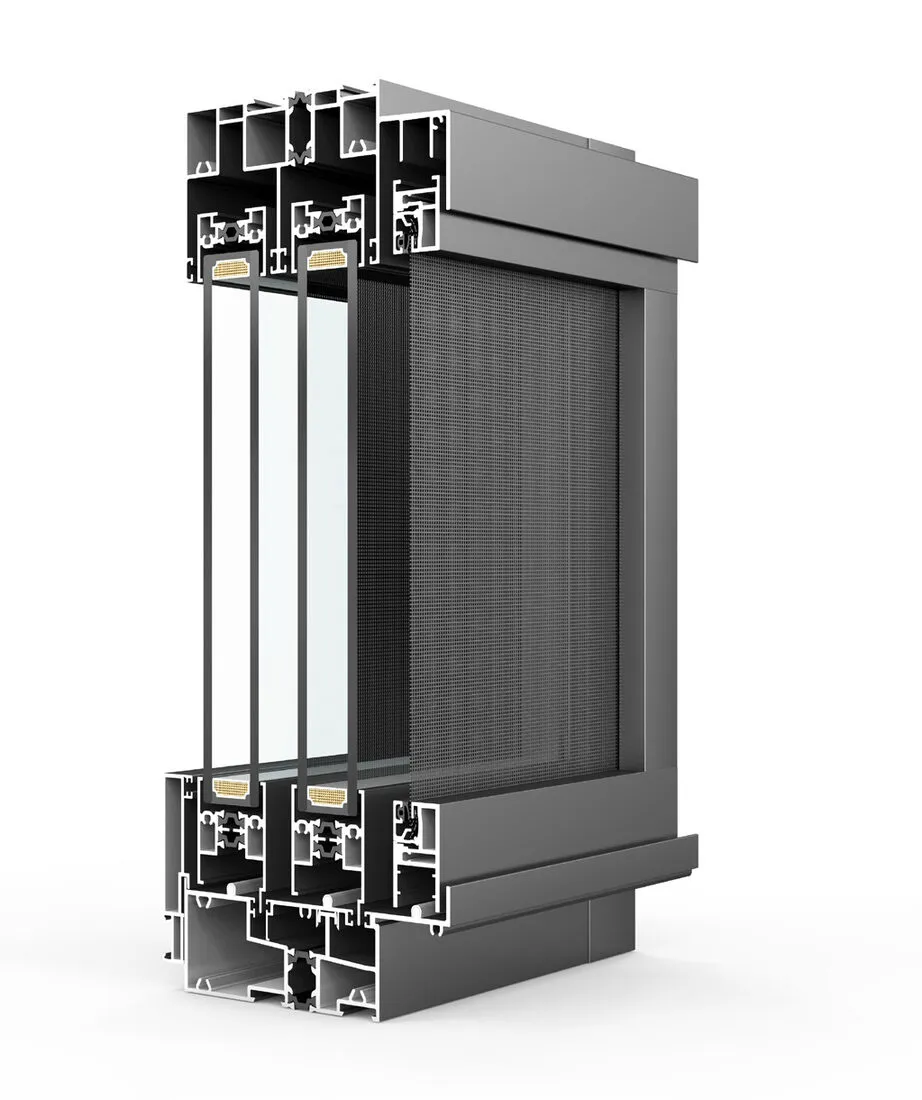

110 Series Slim-Frame Sliding Window
قطاع 110 العازل للحرارة — نوافذ سحّاب بإطار نحيف
The window-scale slim slider: openings from 500 × 1000 mm up to 4000 × 2000 mm, with a screened variant, thermal break, and 5+20A+5 glazing.
Product attributes المواصفات
- Min Size
- 500 × 1000 mm
- Max Size
- 4000 × 2000 mm
- Max Load
- 100 kg
- Glass Specification
- 5+20A+5 mm
Performance الأداء
- U-Value (BTU/ft²·hr·°F)
- 0.229
- Water Penetration (Pa)
- 260
- Serviceability Limit State (SLS)
- 1680
- Ultimate Limit State (ULS)
- 2520
Parameters obtained through AAMA / CSA / NAFS testing. The system structure can be adjusted to project requirements to achieve higher parameters.
