Thermal Break

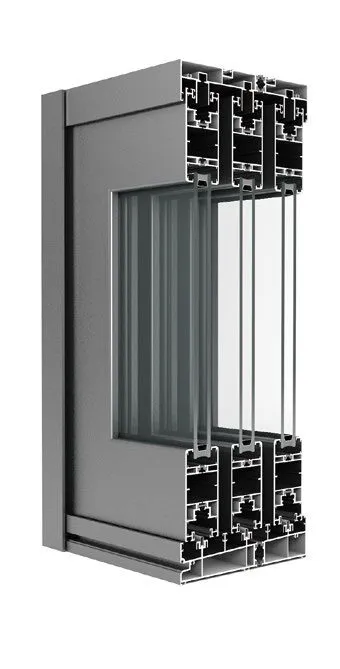

205 Series Heavy-Duty Lift-Slide
قطاع 205 العازل للحرارة — أبواب سحّاب ثقيلة
The 205 is the heavyweight: a lifting-sliding mechanism on a 205 mm section that glides 200 kg panels up to 3.2 metres tall with one hand, on HOPO hardware.
Product attributes المواصفات
- Opening Method
- Lifting sliding
- Min Size
- Panel 1500 × 600 mm
- Max Size
- Panel 3200 × 2000 mm
- Max Load
- Single panel 200 kg
- Glass Specification
- 5+15A+5 mm
- Hardware Brand
- HOPO
Performance الأداء
- U-Value (BTU/ft²·hr·°F)
- 0.229
- Water Penetration (Pa)
- 260
- Serviceability Limit State (SLS)
- 1680
- Ultimate Limit State (ULS)
- 2520
Parameters obtained through AAMA / CSA / NAFS testing. The system structure can be adjusted to project requirements to achieve higher parameters.
