Thermal Break

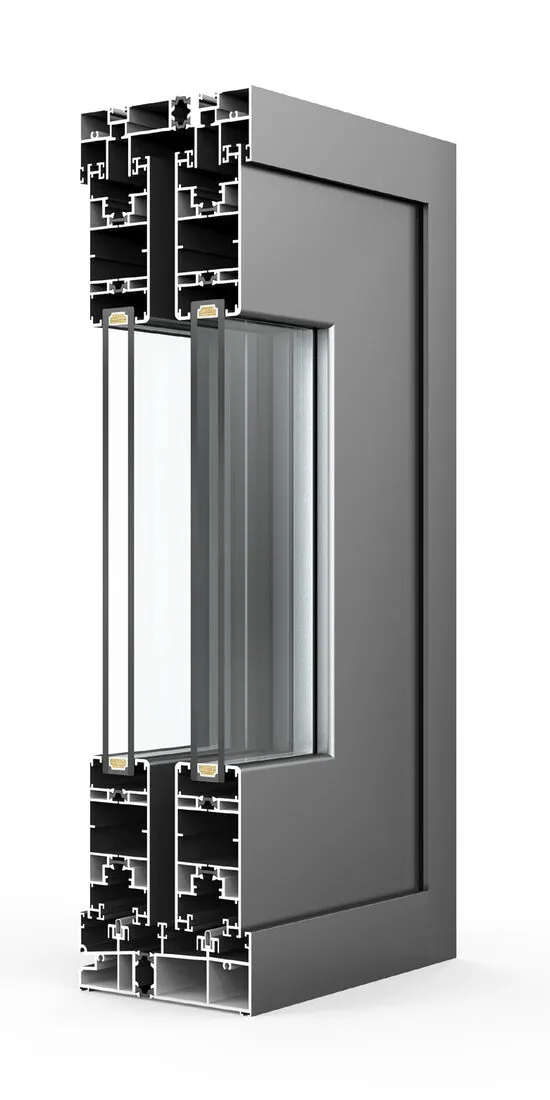

135 Series Heavy-Duty Sliding Door
قطاع 135 العازل للحرارة — أبواب سحّاب ثقيلة
The 135 puts lifting-sliding hardware into a more compact frame: panels from 1.5 to 3.2 metres tall, each carrying up to 200 kg on HOPO gear.
Product attributes المواصفات
- Opening Method
- Lifting sliding
- Min Size
- Panel height 1500 mm
- Max Size
- Panel height 3200 mm
- Max Load
- Single panel 200 kg
- Glass Specification
- 5+15A+5 mm
- Hardware Brand
- HOPO
Performance الأداء
- U-Value (BTU/ft²·hr·°F)
- 0.229
- Water Penetration (Pa)
- 260
- Serviceability Limit State (SLS)
- 1680
- Ultimate Limit State (ULS)
- 2520
Parameters obtained through AAMA / CSA / NAFS testing. The system structure can be adjusted to project requirements to achieve higher parameters.
