Thermal Break

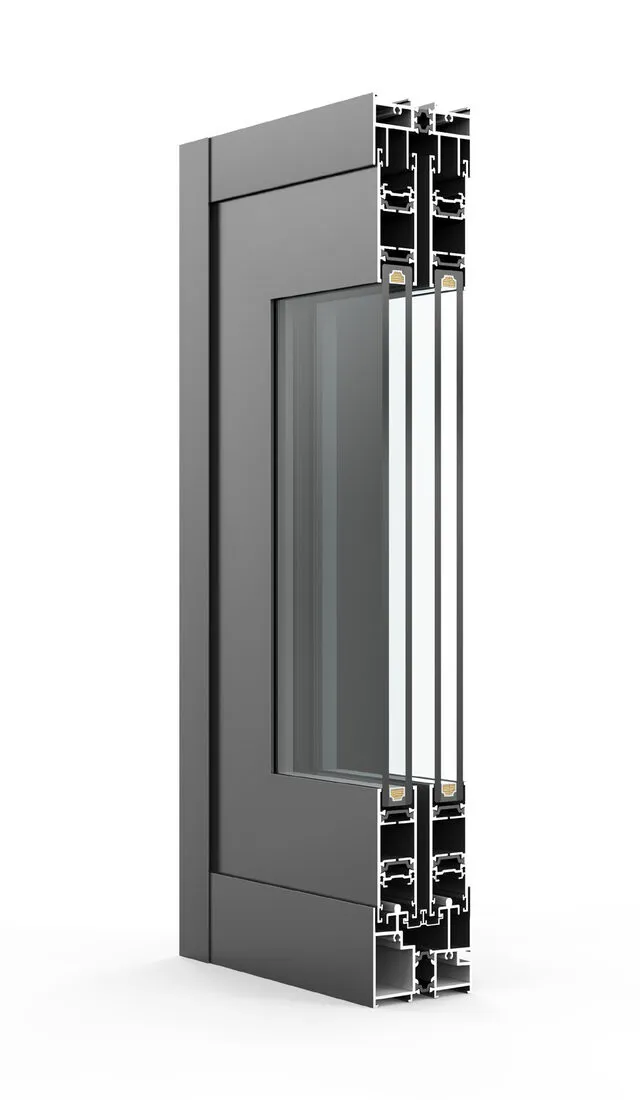

120 Series Sliding with Screen
قطاع 120 العازل للحرارة — نوافذ وأبواب سحّاب وشبك
A thermal-break slider with a dedicated screen track — windows and doors that stay open to the evening air. Panels up to 2.3 metres and 150 kg on HOPO / KINLONG hardware.
Product attributes المواصفات
- Opening Method
- Sliding
- Min Size
- Panel height 400 mm
- Max Size
- Panel height 2300 mm
- Max Load
- Single panel 150 kg
- Glass Specification
- 5+10A+5 mm
- Hardware Brand
- HOPO / KINLONG
Performance الأداء
- U-Value (BTU/ft²·hr·°F)
- 0.229
- Water Penetration (Pa)
- 260
- Serviceability Limit State (SLS)
- 1680
- Ultimate Limit State (ULS)
- 2520
Parameters obtained through AAMA / CSA / NAFS testing. The system structure can be adjusted to project requirements to achieve higher parameters.
