Thermal Break

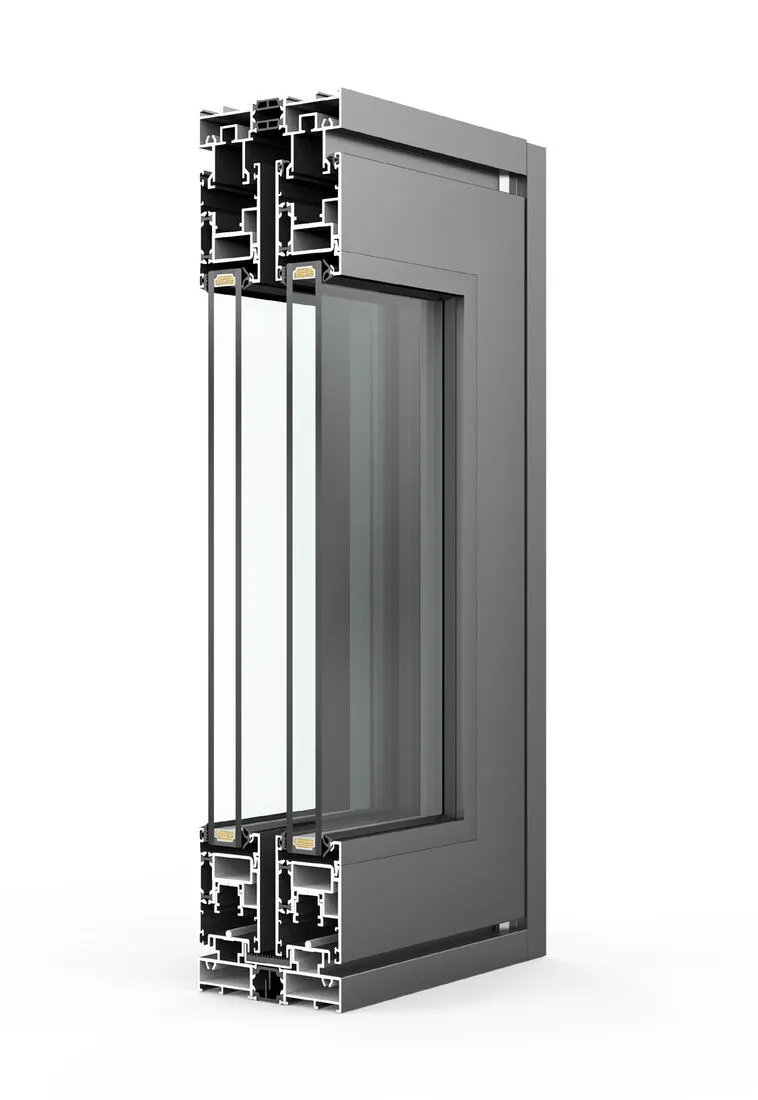

116 Series Slim-Frame Sliding Door
قطاع 116 العازل للحرارة — أبواب سحّاب بإطار نحيف
Slim frames, serious capacity: the 116 carries the heaviest panels in the range — 240 kg, up to 3.5 metres tall — on CMECH hardware, behind a minimal sightline.
Product attributes المواصفات
- Opening Method
- Sliding
- Min Size
- Panel height 600 mm
- Max Size
- Panel height 3500 mm
- Max Load
- Single panel 240 kg
- Glass Specification
- 5+24A+5 mm
- Hardware Brand
- CMECH
Performance الأداء
- U-Value (BTU/ft²·hr·°F)
- 0.229
- Water Penetration (Pa)
- 260
- Serviceability Limit State (SLS)
- 1680
- Ultimate Limit State (ULS)
- 2520
Parameters obtained through AAMA / CSA / NAFS testing. The system structure can be adjusted to project requirements to achieve higher parameters.
