50 Series Casement
قطاع 50 — نوافذ مفصلية وأبواب

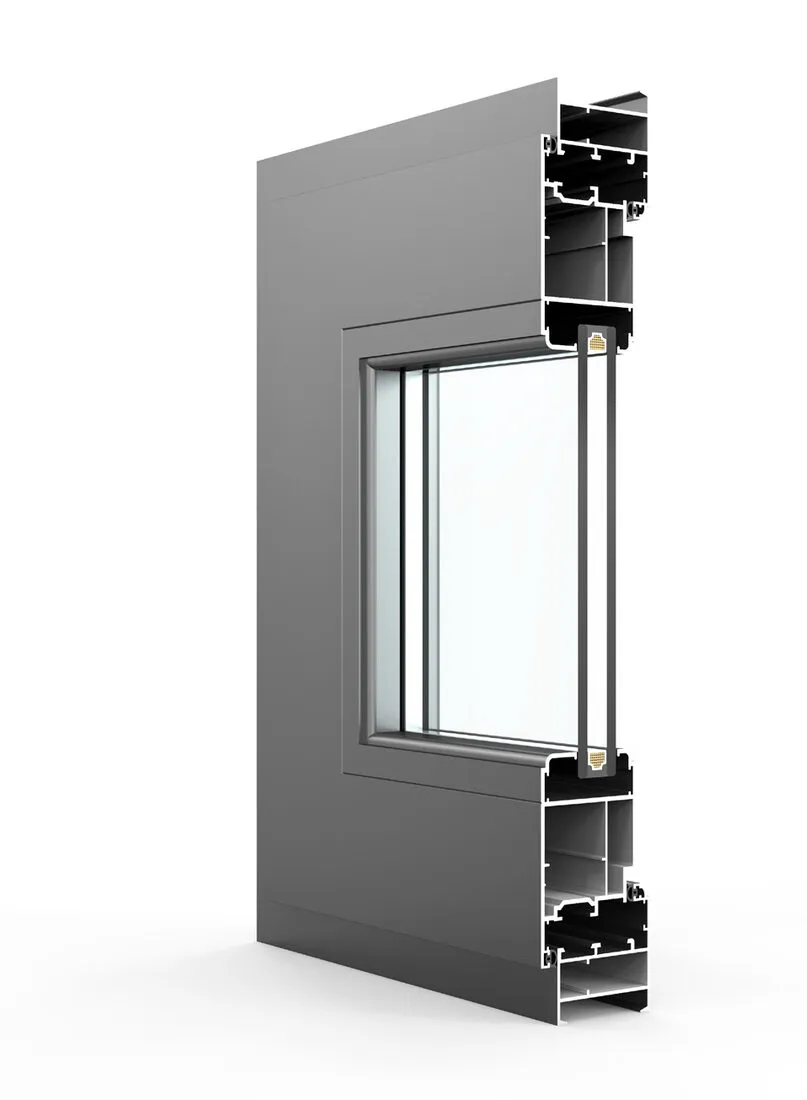

The 50 series is the streamlined casement: a 50 mm profile without thermal break, suited to interior partitions, service areas, and budgets that still expect a precise aluminium frame.
Product attributes المواصفات
- Outer Frame Thickness
- 1.4 mm
- Window Panel Thickness
- 1.4 mm
- Door Panel Thickness
- 1.8 mm
- Width Limit
- 600 – 900 mm
- Height Limit
- 1800 – 2400 mm
- Glass Specification
- Regular hollow insulating glass
- Hardware Brand
- KINLONG
Performance الأداء
- U-Value (BTU/ft²·hr·°F)
- 0.229
- Water Penetration (Pa)
- 260
- Serviceability Limit State (SLS)
- 1680
- Ultimate Limit State (ULS)
- 2520
Parameters obtained through AAMA / CSA / NAFS testing. The system structure can be adjusted to project requirements to achieve higher parameters.
