Thermal Break

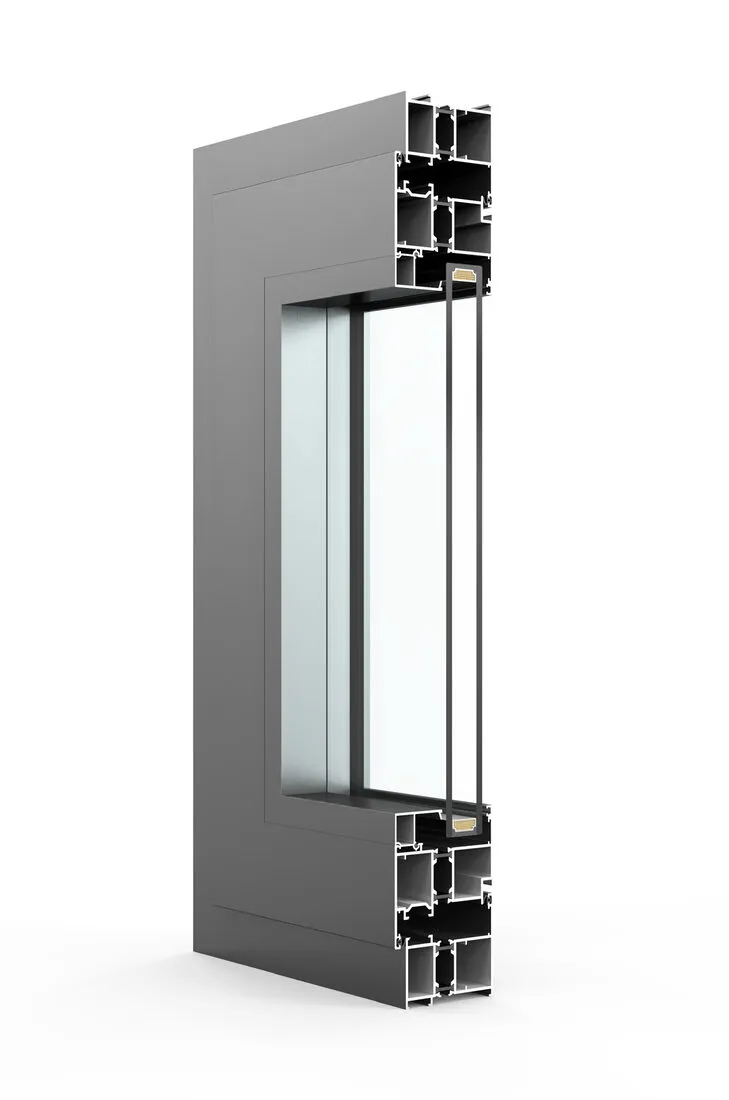

70 Series Thermal Break Casement
قطاع 70 العازل للحرارة — نوافذ مفصلية وأبواب
A 70 mm thermal-break casement that balances profile depth with cost — the everyday choice for residential windows and doors, with a 2.0 mm insulation strip and KINLONG hardware.
Product attributes المواصفات
- Outer Frame Thickness
- 1.8 mm
- Window Panel Thickness
- 1.4 mm
- Door Panel Thickness
- 1.7 mm
- Width Limit
- 520 – 800 mm
- Height Limit
- 700 – 1500 mm
- Glass Specification
- Regular hollow insulating glass
- Thermal Insulation Strip
- 2.0 mm
- Hardware Brand
- KINLONG
Performance الأداء
- U-Value (BTU/ft²·hr·°F)
- 0.229
- Water Penetration (Pa)
- 260
- Serviceability Limit State (SLS)
- 1680
- Ultimate Limit State (ULS)
- 2520
Parameters obtained through AAMA / CSA / NAFS testing. The system structure can be adjusted to project requirements to achieve higher parameters.
