Thermal Break

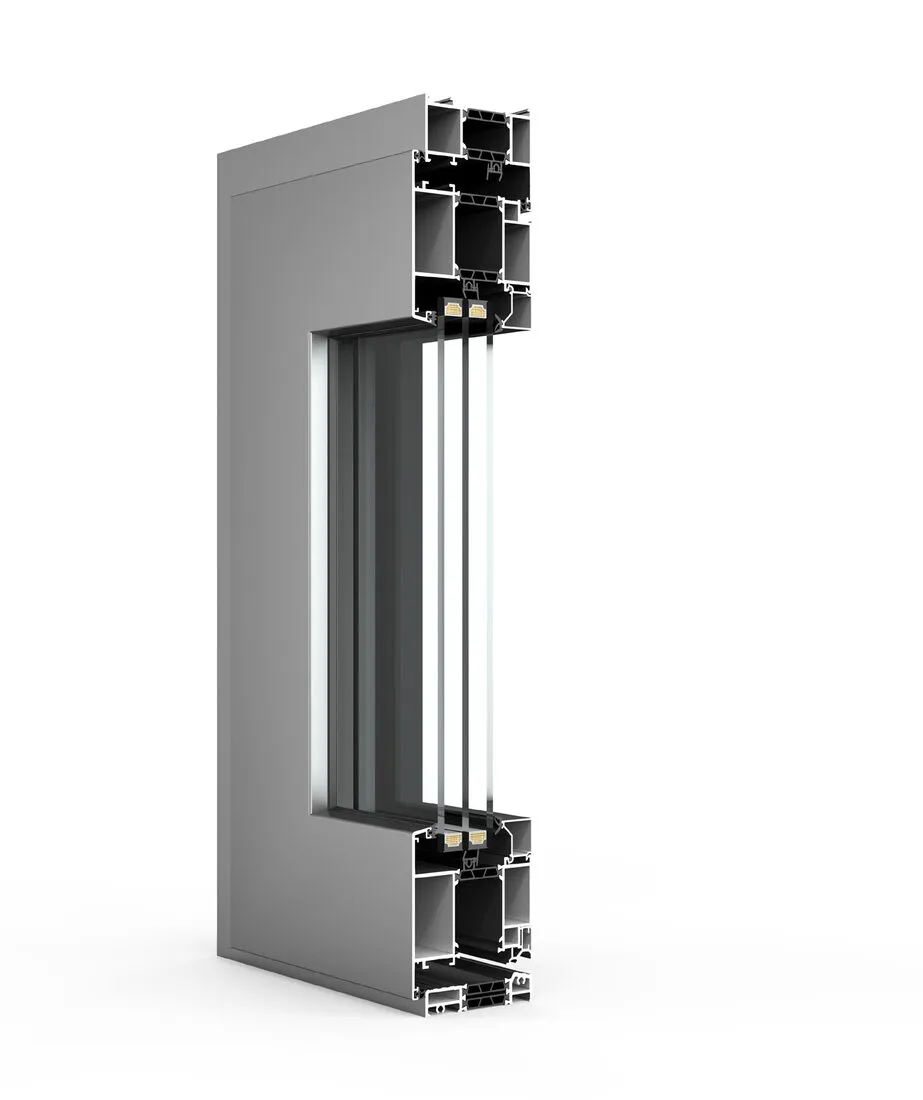

80 Series Thermal Break Casement
قطاع 80 العازل للحرارة — نوافذ مفصلية وأبواب
The 80 series is the flagship hinged system: an 80 mm thermal-break profile that accepts triple glazing and KINLONG hardware as standard. Built for villas where insulation and security carry equal weight.
Product attributes المواصفات
- Outer Frame Thickness
- 1.8 mm
- Window Panel Thickness
- 1.8 mm
- Door Panel Thickness
- 2.0 mm
- Width Limit
- 520 – 800 mm
- Height Limit
- 700 – 1500 mm
- Glass Specification
- Regular hollow 5+27A+5 mm · Triple 5+12A+5+15A+5 mm
- Thermal Insulation Strip
- 0.8 mm
- Hardware Brand
- KINLONG
Performance الأداء
- U-Value (BTU/ft²·hr·°F)
- 0.229
- Water Penetration (Pa)
- 260
- Serviceability Limit State (SLS)
- 1680
- Ultimate Limit State (ULS)
- 2520
Parameters obtained through AAMA / CSA / NAFS testing. The system structure can be adjusted to project requirements to achieve higher parameters.
