Thermal Break

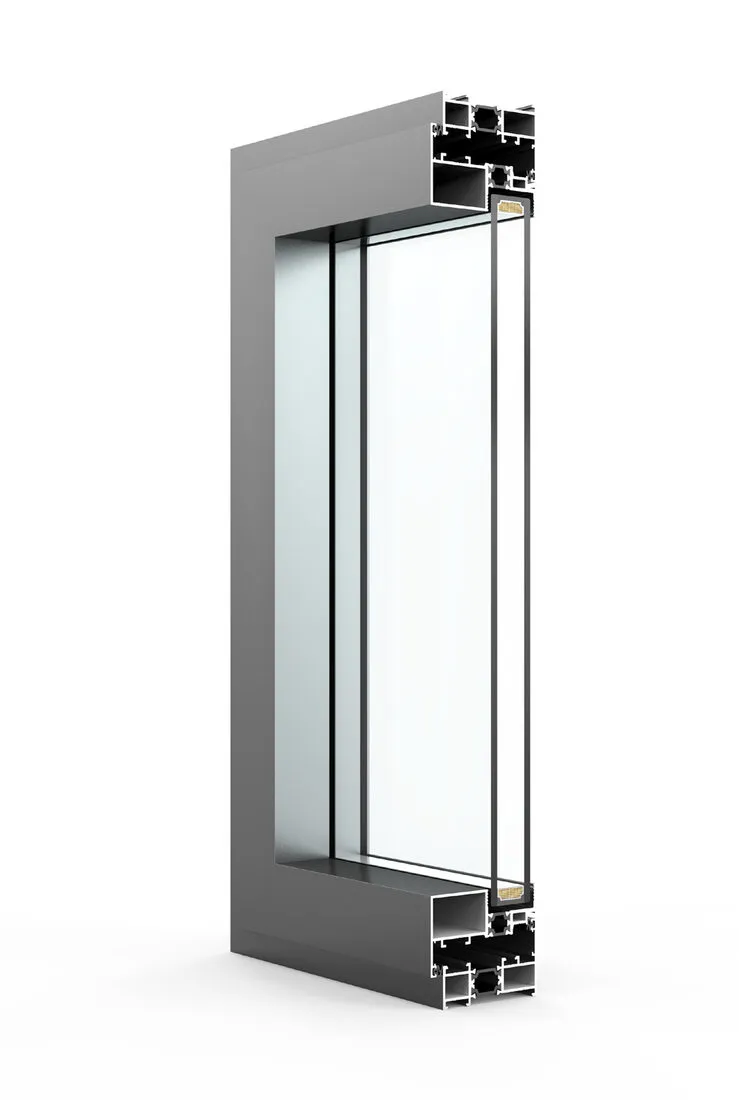

75 Series Slim-Frame Casement
قطاع 75 العازل للحرارة — نوافذ مفصلية بإطار نحيف
The slim-frame member of the casement family. The 75 series trims the visible aluminium to a minimum while keeping the thermal break, for façades where glass should dominate.
Product attributes المواصفات
- Opening Method
- Fixed · Casement · With mesh screen
- Panel Height
- 350 – 1200 mm
- Max Load
- 100 kg
- Glass Specification
- 5+20A+5 mm
- Hardware Brand
- STORO
Performance الأداء
- U-Value (BTU/ft²·hr·°F)
- 0.229
- Water Penetration (Pa)
- 260
- Serviceability Limit State (SLS)
- 1680
- Ultimate Limit State (ULS)
- 2520
Parameters obtained through AAMA / CSA / NAFS testing. The system structure can be adjusted to project requirements to achieve higher parameters.
